Classicism Style Furnished Light Steel Structure Two Storey Prefab Luxury Villa

Classicism Style Furnished Light Steel Structure Two Storey Prefab Luxury Villa

The two-storey light steel villa has four bedrooms suitable for large families, strong and durable, meticulous workmanship, beautiful personality, convenient transportation, excellent products with personalized customization.

Product Details
video6

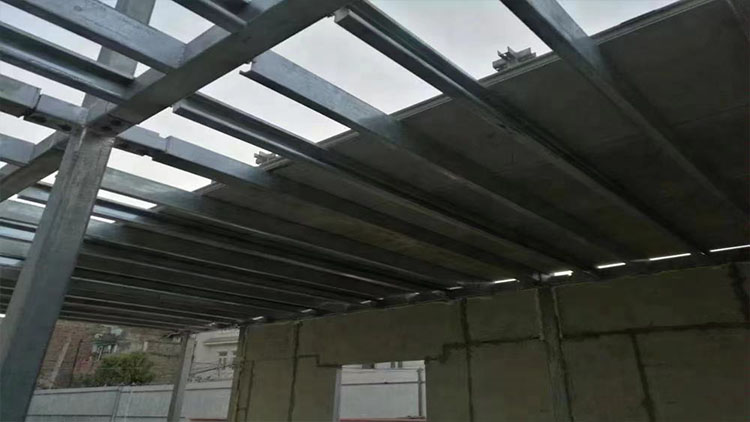

Light Steel Villa Display

steel villa.jpg

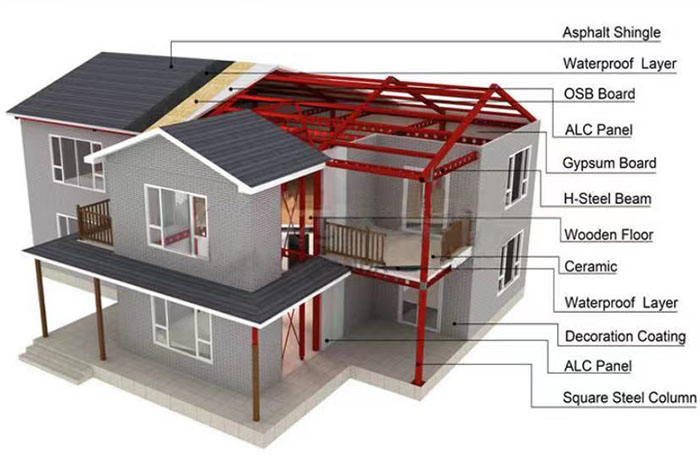

The two-story light steel villa has four bedrooms suitable for large families, strong and durable.

steel villa.jpg

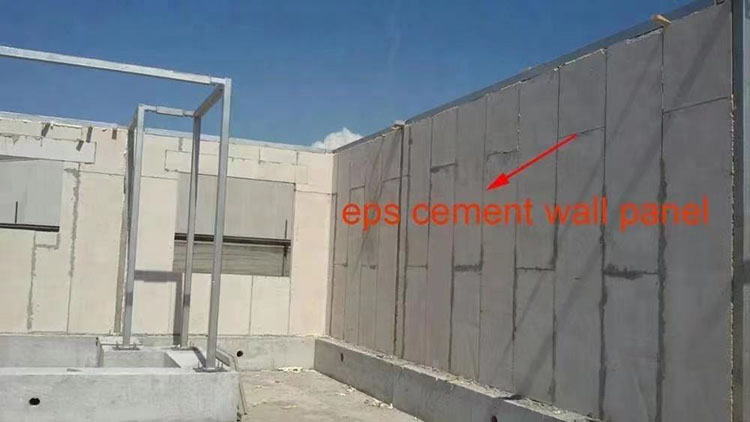

Steel Structure Prefabricated Home Villa, No cement, no sand, no-churn.

Like building blocks can be built into a beautiful villa.

steel villa.jpg

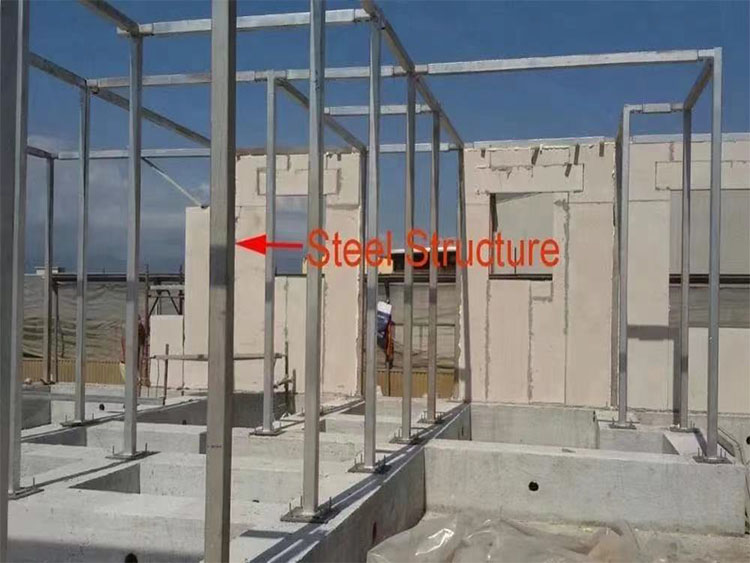

It can be built and delivered safely and quickly in a short period of time.

predab villa.jpg

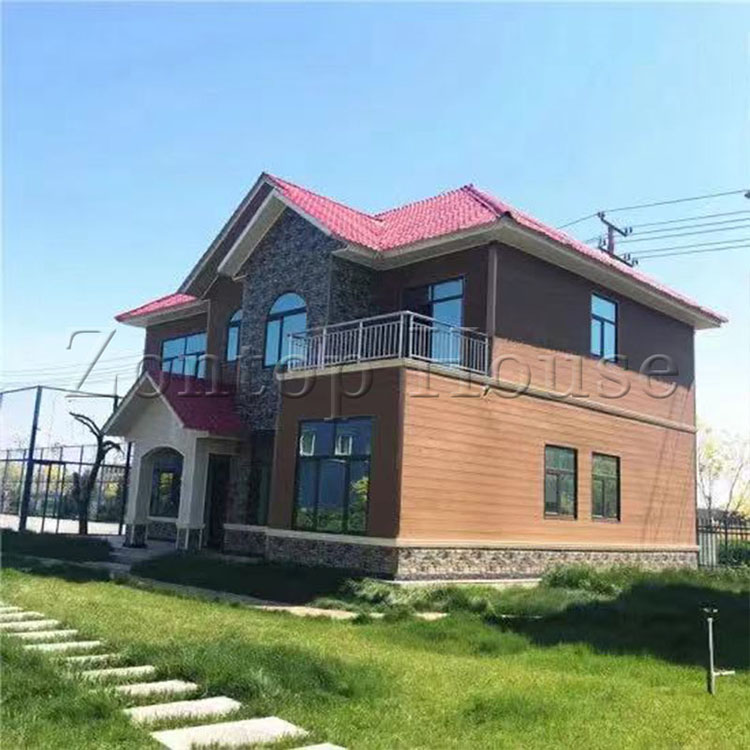

Light Steel Villa  Descriptionsteel villa.jpg

Product NameLight Steel Villa
Steel columnGalvanized Steel Frame, 100*100*2.5 square tube
Steel roof trussC100*40*15*2.0, welding and galvanized
Roof and wall purlinC100*40*15*2.0, galvanized
Ordinary bolt 4.8S, Galvanized
Main beam Galvanized Steel Frame, Q235 Steel, alkyd painting
Secondary beam C100*40*15*2.0 galvanized
Floor structure board Glass Magnesium board/ Fiber cement board
Wall Panel Colored-steel sheet
EPS sandwich panel/rock wool sandwich panel
Glass wool sandwich panel
Fire rating:A

Door Fire-resistant steel door/ Alloy sliding door
Live load on the roofIn 120kg/Sqm
Wind Resistance Grade12 Grades
Earthquake-resistance10 Grades
Structure Usage70 years

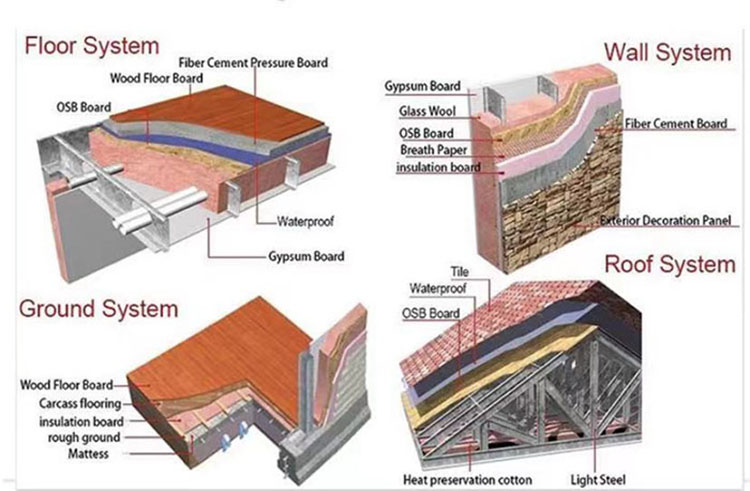

villa.jpgLight Steel Villa Advantage:

1. Shock resistance: It can withstand10 rare earthquakes and is suitable for areas with seismic intensity above 8.

2. Wind resistance: resistance to 70m/s hurricane, wind resistance rating is 14 or above.

3. Durability: The main structure can last for more than100 years.

4. Fire resistance: refractory time of up to 1-4 hours according to different designs.

5. Sound insulation: the sound insulation of the external wall can reach 75dB, and the inner wall can reach 55dB.

6. Heat insulation: The thermal resistance of a 200mm thick composite wall can reach 3.2m2K/W, which is 11 times that of the traditional building of same thickness.

7. Environmental protection: more than90% of steel structure material can be recycled, and most other supporting material can be recycled.

8. Energy-saving: using new material for heat preservation and heat insulation.


we focus on supplying durable products that adhere to the best health and safety standards and environmentally friendly at the right price. Please check our products to see exactly why we've chosen to supply the products we have.
