Modular Accommodation Camp Light Steel Structure Mobile Prefabricated K House

Modular Accommodation Camp Light Steel Structure Mobile Prefabricated K House

The prefab house is also known as the movable prefab house and the colored steel movable house. The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.

Product Details
video6

Prefab K House Overview

The prefab house is also known as the movable prefab house and the colored steel movable house. The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.

prefab K house, prefabricated K house, temporary dormitory mobile prefab house, light steel frame prefab house, Temporary dormitory

Prefab K House Parameter

Product Name

Prefab House

Column

Double C80 steel, Thickness 1.8mm, Material Q235

Roof Beam

C80 steel, Thickness 1.5mm, Material Q235

Floor Purlin

C80 steel, Thickness 1.5mm, Material Q235

Wall Panel

Colored-steel sheet
EPS sandwich panel/rock wool sandwich panel
Glass wool sandwich panel
Fire ratingA

Window

Aluminum sliding window/sliding window with a security bar

Door

Steel door. High-quality press lock

Roof bearing weight

110kg/m2

Snow load on roof

130Pa (13cm thickness)

Floor bearing weight

200kg/m2

Anti-earthquake

9 grade

Application

Dormitory/Storage/Office/Carport/Hotel/Sentry Box/Warehouse/Store/Refugee/Workshop, etc

prefab house,prefab home,prefabricated houseThis product can be widely used in the construction site, camp site, government settlement housing, public events, commercial events and etc.

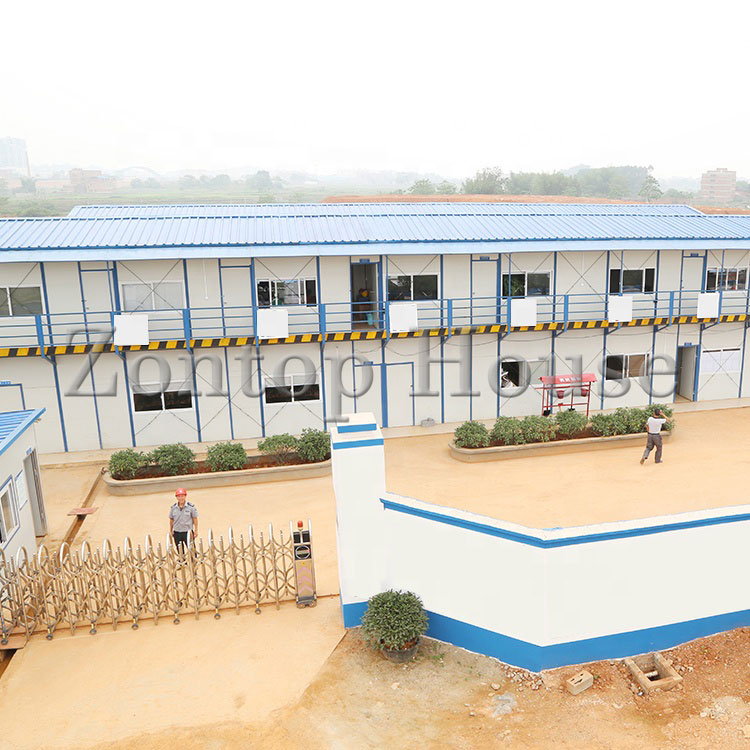

Zontop Project multi-angle display

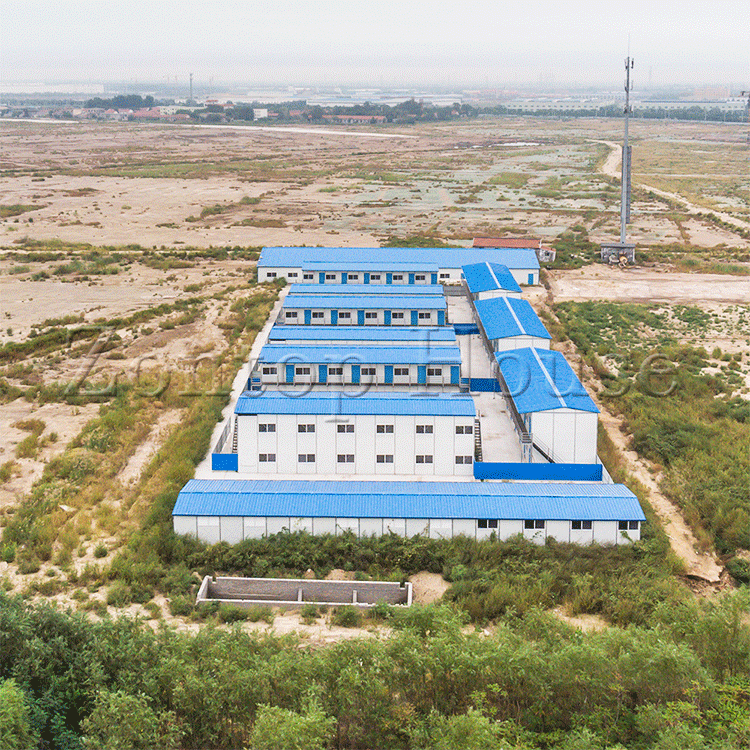

prefab K house, prefabricated K house, temporary dormitory mobile prefab house, light steel frame prefab house, Temporary dormitory

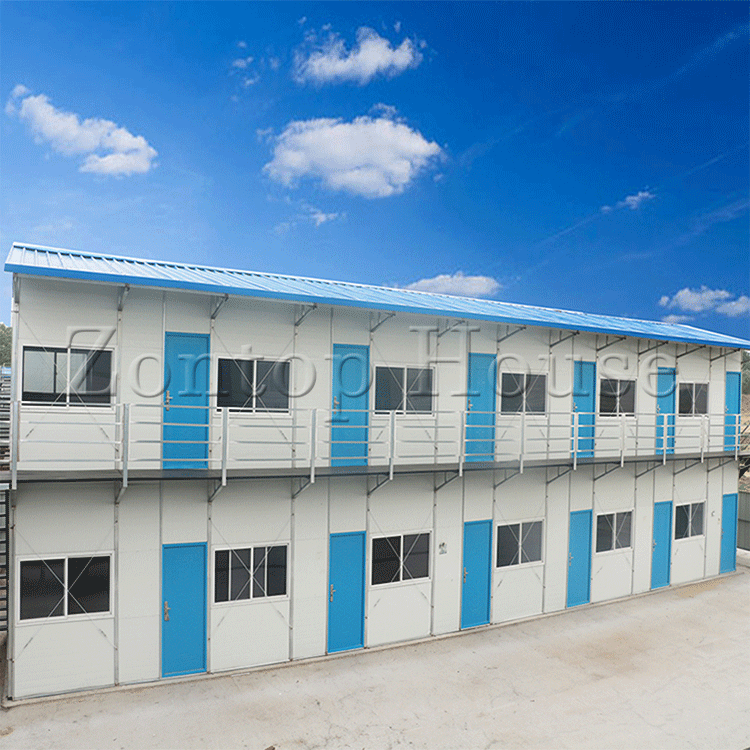

prefab K house, prefabricated K house, temporary dormitory mobile prefab house, light steel frame prefab house, Temporary dormitory

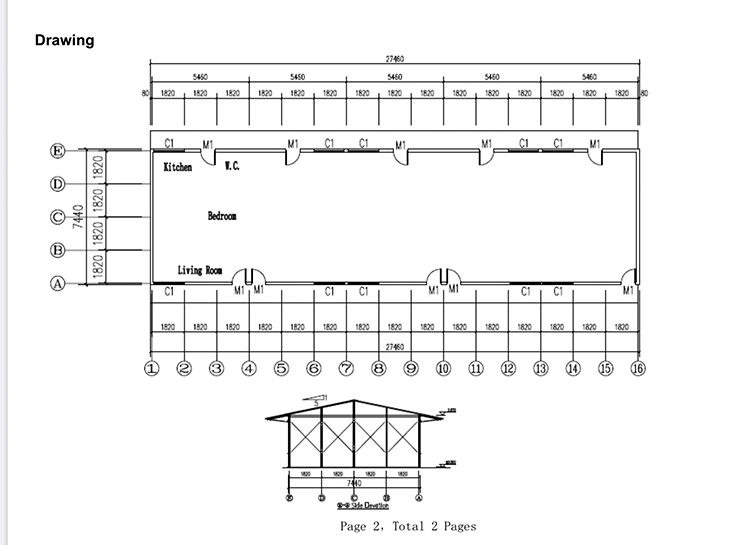

详情图142.jpgProjects' layout drawing display

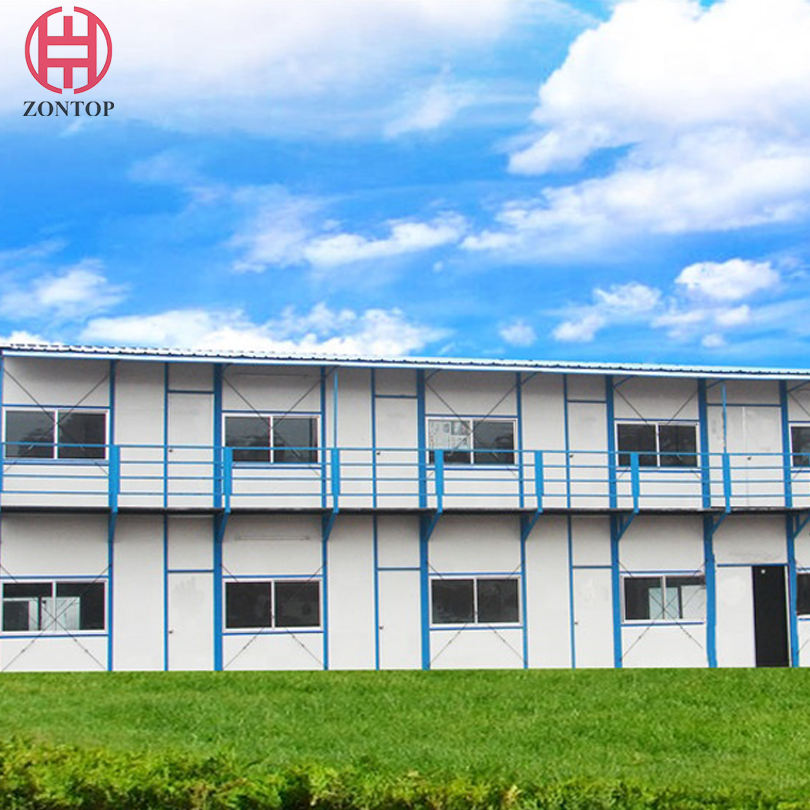

prefab K house, prefabricated K house, temporary dormitory mobile prefab house, light steel frame prefab house, Temporary dormitory

Transportationprefab K house, prefabricated K house, temporary dormitory mobile prefab house, light steel frame prefab house, Temporary dormitory


Why choose Us:

1. Our product can be designed as customers’ interest.

2. Every production line will be checked by professional person and all products must 3. Go through multi-channel detection steps before packaging.

4. We can provide professional for installation guide.

5. The products shown are only part of our products. For more details ,please feel free to contact us anytime.
