Prefab K Type House Construction Site Labour Camp Easily Assembled Temporary Prefab House

Prefab K Type House Construction Site Labour Camp Easily Assembled Temporary Prefab House

The prefab house is also known as the movable prefab house and the colored steel movable house. The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.

Product Details
video6

Prefab K House Overview

The prefab house is also known as the movable prefab house and the colored steel movable house. The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.

prefab K house, prefabricated K house, temporary dormitory, mobile prefab house, light steel frame prefab housePrefab K House parameter

Product Name

Prefab House

Column

Double C80 steel, Thickness 1.8mm, Material Q235

Roof Beam

C80 steel, Thickness 1.5mm, Material Q235

Floor Purlin

C80 steel, Thickness 1.5mm, Material Q235

Wall Panel

Colored-steel sheet
EPS sandwich panel/rock wool sandwich panel
Glass wool sandwich panel
Fire ratingA

Window

Aluminum sliding window/sliding window with a security bar

Door

Steel door. High-quality press lock

Roof bearing weight

110kg/m2

Snow load on roof

130Pa (13cm thickness)

Floor bearing weight

200kg/m2

Anti-earthquake

9 grade

Application

Dormitory/Storage/Office/Carport/Hotel/Sentry Box/Warehouse/Store/Refugee/Workshop, etc

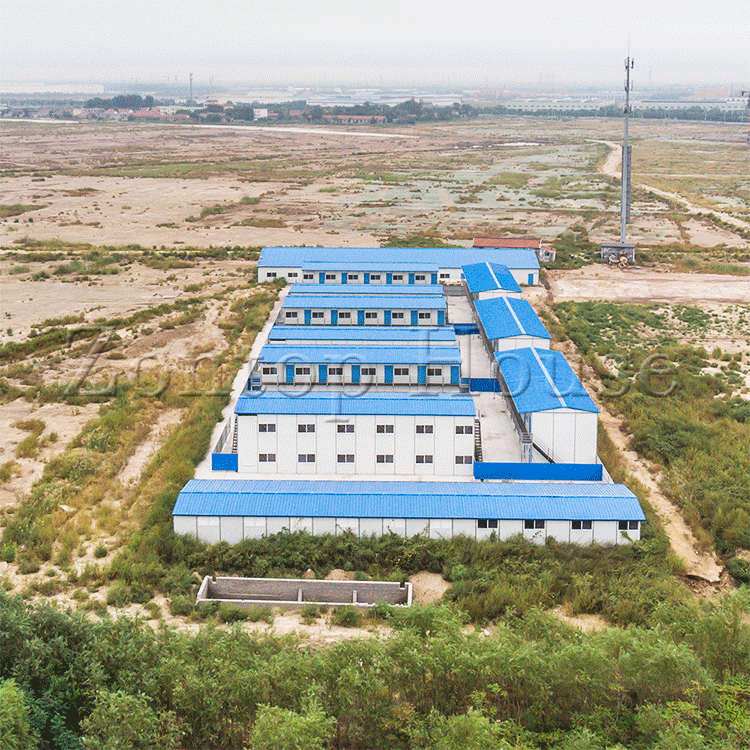

Prefab K House display

prefab house,prefab home,prefabricated house

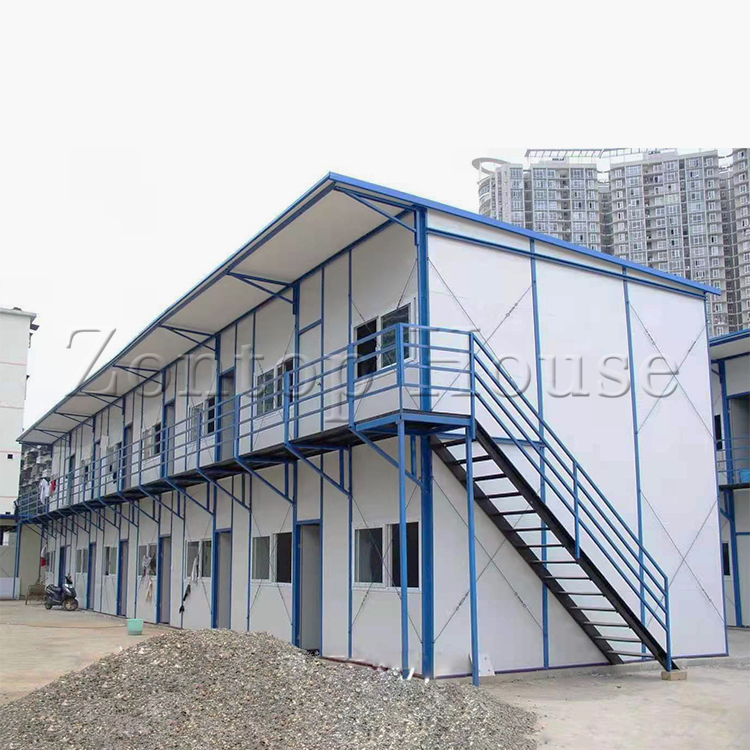

Prefab K-House  is a type of temporary buildings using the steel structure as the fundamental system for the floor load bearing, and the self strength of sandwich panels as the load transferring factor, while connecting them by the efficient method.prefab house,prefab home,prefabricated house

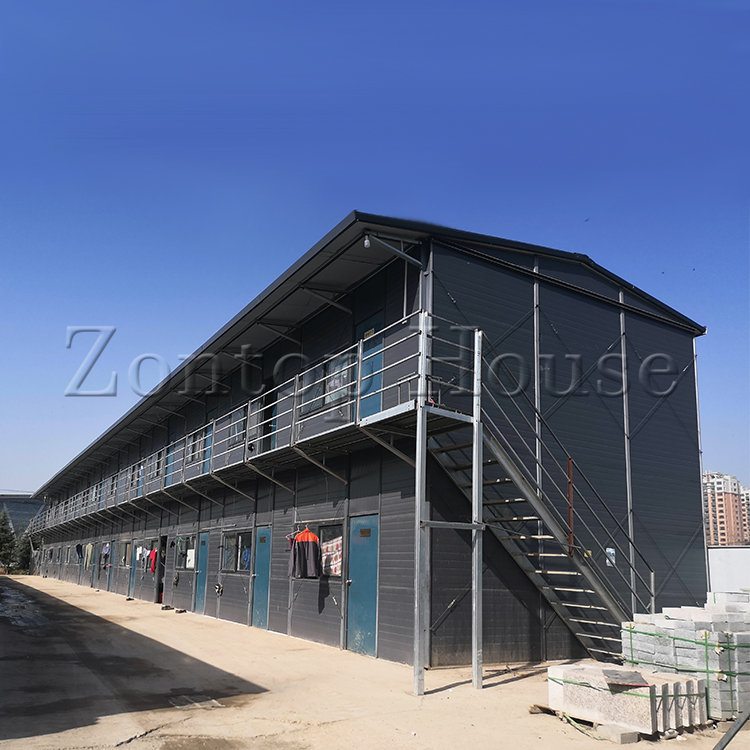

Prefab K House details


prefab house,prefab home,prefabricated house

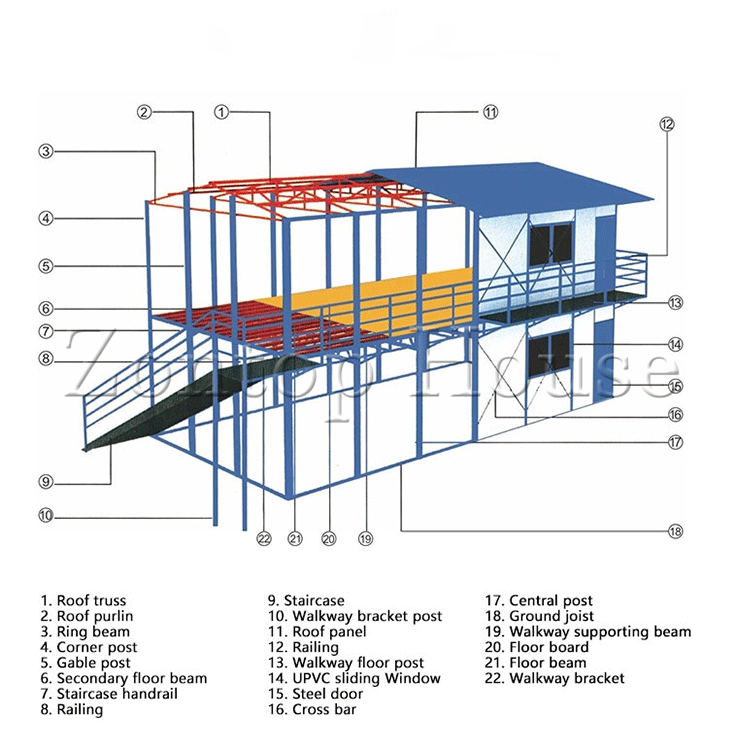

Prefab K House structure

prefab house,prefab home,prefabricated house

Prefab K House Features and Advantages

1. Recycle use:

all components are standard and fabricated in factory, which makes it suitable in recycle use for many times.

2. Reliable Structure: The light steel and the flexible structure system is more safe and reliable which makes it to meet the design criteria based on the construction requirements.

3. Various selection:

the house can be designed as single, two or three stories, the outer panels can be selectable based on fireproof or non-fireproof materials

4. Assembly & Dismantling: Can be assembled and dis-Mantled with simple tools and Multiple times.

5. Easy & Quick installation: 6 workers + 2 days = 3K x 10K.

6. Elegant outlook: The house is elegant in appearance.

7. Flexible: The doors and windows can be fixed in random position. Interior partition can be arranged in any position on the transverse Direction.

8. Long life:All the light steel construction has been Auto-painted and highly resistant to corrosiveness.

prefab house,prefab home,prefabricated house

Service:

* Twenty-four hours online and one-to-one service, solve your problem efficiently and timely.

* Installation video and guide book will be send to you demonstrating the steps for installation. Or an engineer or installation team can be arranged on site.

* Perfect after-sale service is also provided.
